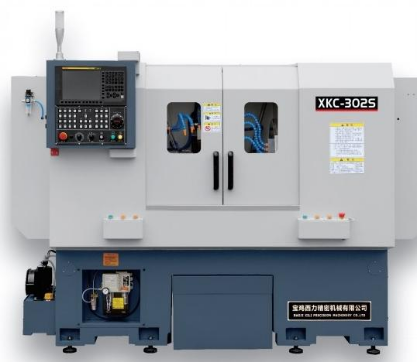

302S DOUBLE spindle CNC lathe


302S

DOUBLE spindle CNC lathe

Double Spindle Structure

The spindle and sub-spindle adopt the built-in electric spindle structure, with high speed, low noise, compact structure and small inertia, which can complete the front and back processing of a part at one time,reduce these quencing link, and easily realize the requirements of automatic production.

High Accuracy Spindle

The spindle and sub-spindle are made of Japanese NSK ultra-high precision angular contact ball bearings to ensure the high rigidity and precision retention of the spindle.

Comb Type Tool Rest

The novel double-row tools holder has a small repeated tool change error, flexible tool loading, high-speed and accurate tool change, and greatly saves processing time.380mm large stroke design, processing diameter below 30, the number of row knives up to 8.

Dual-X-Axis, Dual-Z-Axis Structure

The two X-axis and Z-axis are servo driven respectively, and the interference is small ;It is especially suitable  for  the  automated, continuous and stable processing of large quantities, short shafts and  small disc parts, and is especially suitable for the continuous front and  back of the bar to be processed at one time. It can complete the butt cutting of the main and auxiliary shafts, the synchronous processing of the front and back sides, and the loading of single trusses and robots.

Automatic Conveyer Device

The sub-spindle is designed with a separate material receiving device to collect workpieces without opening the door, completing continuous production and ensuring safety and efficiency.

項目ITEM

302S

加工能力

Capacity

最大回轉直徑Max swing diameter

φ300mm

床鞍上回轉直徑Swing over cross slide

Φ150mm







主軸

Spindle

回轉速度Spindle speed

60-6000r/min

回轉速度變換Number of spindle ranges

無級Stepless

主軸通孔直徑Through hole diameter

Φ40mm

主軸最大夾持直徑(筒夾)Max spindle camp diameter(collet)

φ30mm

工件夾持Clamp type

前推式筒夾CL-30 push type collet

主軸可通過棒料直徑spindle through bar diameter

Φ30mm

最大加工直徑Max machining diameter

φ100mm

最大加工長度Max machining length

100mm







副主軸

Sub spindle



回轉速度Spindle speed

60-6000r/min

回轉速度變換Number of spindle ranges

無級Stepless

副主軸通孔直徑Sub Through hole diameter

Φ30mm

主軸最大夾持直徑(筒夾)Max Sub spindle camp diameter(collet)

φ30mm

工件夾持Clamp type

前推式筒夾CL-30 push type collet

主軸可通過棒料直徑Sub spindle through bar diameter

Φ30mm

最大加工直徑Max machining diameter

φ100mm

最大加工長度Max machining length

100mm



快移速度

Rapid speed

X1軸快移速度X1-axis rapid traverse

15m/min

Z1軸快移速度Z1-axis rapid traverse

18m/min

X2軸快移速度X2-axis rapid traverse

15m/min

Z2軸快移速度Z2-axis rapid traverse

18m/min

移動量

Travelof tool slide

X1軸移動量X1-axis travel

380mm

Z1軸移動量Z1-axis travel

350mm

X2軸移動量X2-axistravel

380mm

Z2軸移動量Z2-axis travel

350mm





電機

Motor

主軸電機(內藏)Spindle motor (Inner Tibet)

5.5/7.5kW

副主軸電機(內藏)Sub spindle motor(Inner Tibet)

5.5/7.5 kW

X1進給電機(抱閘)X1 feed motor(brake)

0.75 kW

Z1進給電機Z1 feed motor

1.3 kW

X2進給電機(抱閘)X2 feed motor(brake)

0.75 kW

Z2進給電機Z2 feed motor

1.3kW

其它

Others

總電氣容量Required electric power

15 kVA

機床尺寸(長×寬×高)Floor Space

2520×1600×1760

機床重量Mass of machine

約3000KG   About 3000KG
