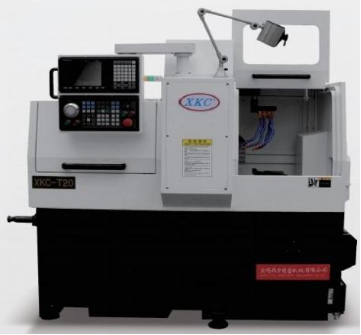

T20 Series Precision Swiss Type Lathe


T20

Series Precision Swiss Type Lathe

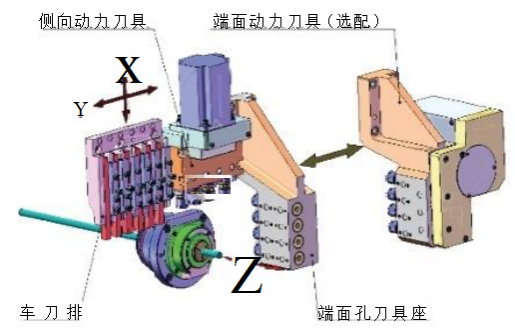

★T20 series precision swiss type lathe with highprecision high speed machine tool performance, side-by-side with two shaft and tool configuration control knife rest arrangement structure, the rest partadopts the unique high rigid design which can realize full depth of processing high rigidity. This series of Z axis line of the machine tool can reach 245mm,more long pieces can decrease thetimes of feeding improve processing efficiency. For most of the partswithin245mm length canbefinished in feeding partsprocessing.


★The series of machine tools with high speed precision synchronous guide bushing, the workpiece endface processing function, lateral  drlling, tapping, milling slot, eccentric hole processing function of  power tool function module, Y axis of super-long stroke can be combinedaccording to th customer needs to customize a variety of flexible toolfunction. Configure automatic feeder, feedingdevice ,continuous processingand high precision. Morevolumecomplex shapeprecision composite processing of shaft parts.



MACHINE SPECIFICATION PARAMETERS

項目ITEM

T20





加工能力

Capacity

最大夾持棒料 Max spindle hole diameter

φ3-φ20mm

最大加工長度 Max turning length

旋轉導套:245mm rotation guide bushing

無導套:45mm No guide bushing

主軸最大鉆孔直徑 Max spindle drilling diameter

φ10mm

主軸最大攻絲直徑 Max spindle tapping diameter

M10

動力頭最大鉆孔直徑 Max power tool drilling diameter

Φ6mm

動力頭最大攻直徑 Max power tapping diameter

M5



主軸

Spindle

最高回轉速度 Max spindle speed

6000r/min

主軸通孔直徑 Spindlebore dia

φ23mm

中心高度 Center height

1000mm

主軸功率 Spindle power

3 KW





刀具配置

Tool specs

刀具數量 Number of tool

14(17)把

車削刀具 Turning tool

6*φ12x150mm

端面鉆孔刀具 Facing tool

4*ER16

側向動力刀具 Side power tool

4*ER16

端面動力刀具(選配) Face power tool (optional)

3*ER16(動力)+4*ER16(端面孔)

動力刀具最高轉速 Max speed of power tool

5500rpm

動力頭電機功率 Motor power of power tool

0.75Kw

行程/進給

Travel/Axes



控制軸數 Numberof axis

X、Y、Z  3軸

快移速度

Rapid move speed

X軸:15m/min

Y軸、Z軸:18m/min

電機功率(X、Y、Z)  Motor power (X、Y、Z)

0.75KW

其它

Others

機床尺寸(長×寬×高) Floor Space

1840*1240*1740mm

機床重量 Mass of machine

2200kg about 2200kg
